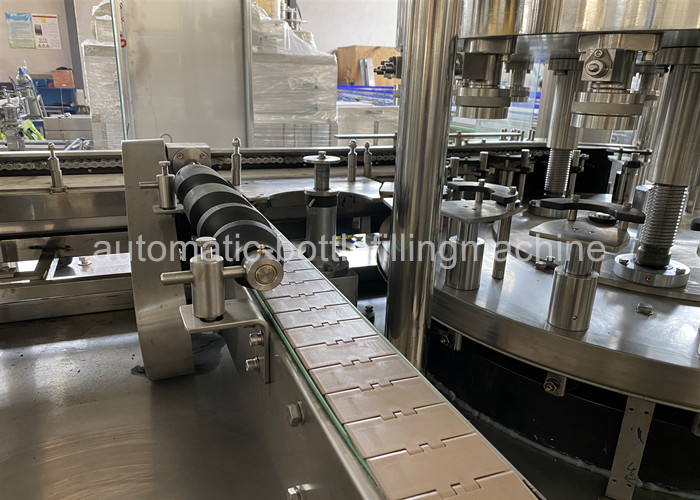

Automatic Beer Aluminum Can Filling Sealing Machine , Carbonated Drink Canning Machine
Product Description:
1. This carbonated drink canning equipment canning-seaming 2-in-1unit is used to produce aluminum canned carbonated soft drink,energy drink,fizzy drink,carbonated soda water,Sparkling water,beer and other gas-contained beverage.
2. It can finish all the process such as canning and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency. It’s design combines with the actual situation in our country after the introduction and absorption from foreign developed technology.
3. The family of our counter pressure filling valves have a smart design, and they are highly engineered in all single components, which allows a standard construction and modular assembly interchanging parts from the different applications and easy retrofitting even after a long time of operation. Also, the operator intervention is fast and easy in maintenance and troubleshooting.
Technical parameter
| Model | DGF18-4 |
| Capacity (can/Hour) | 6000 |
| Suitable can size ( ml ) | 150ml-500ml φ53-φ72.9mm height 65-190mm |
| Can size | 200/202/206/209 |
| Heads of filling | 18 |
| Heads of sealing | 4 |
| Filling way | whole machine bottom lifting up, and normal pressure filling |
| Filling temperature(℃ ) | 65℃ -95℃ Normal temp or 65-95° C |
| Power source specification | AC380V/50HZ |
| Power (kw) | 3 |
| Overall dimension(mm) | 2500x2000x2350 |
| Weight(kg) | 3800 |
Filling part
1) Adopted Germany tech anti-corrosion non-maintaining bearing that can reduce the pollution of filling to the environment.
2) The pressure mechanical valve is introduced the advanced foreign design with a fast filling speed, no hygiene corner pocket, a few sealing parts, and precise liquid level control. The whole valve is made of 304 stainless steel.
3) The filling system can connect a CIP circulation system to wash the pipeline .This system can clean the liquid pipe, liquid tank and filling valve etc. effectively.
Seaming part
1, Ingenious lid loading device to make sure no can, no lid loading, no sealing;
2, Energy saving model, one motor can process all actions;
3, Full sealing effect make sure to be suitable for liquid packing can;
4, The machine suitable for all kinds of cans with same diameter, height can be adjusted easily;
5, Twice sealing tech to make well sealing effect, no leakage;
